Dowel Bar

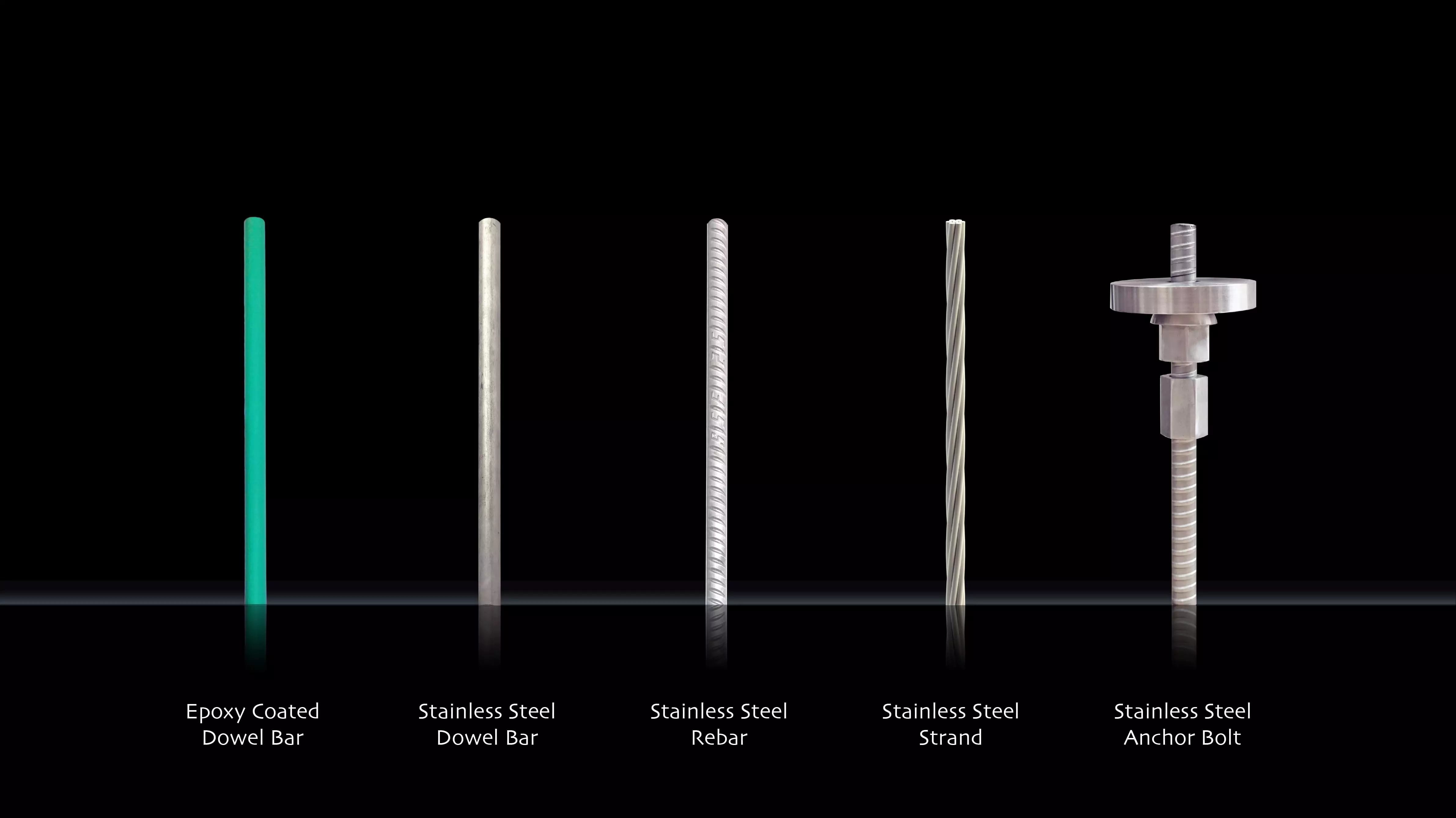

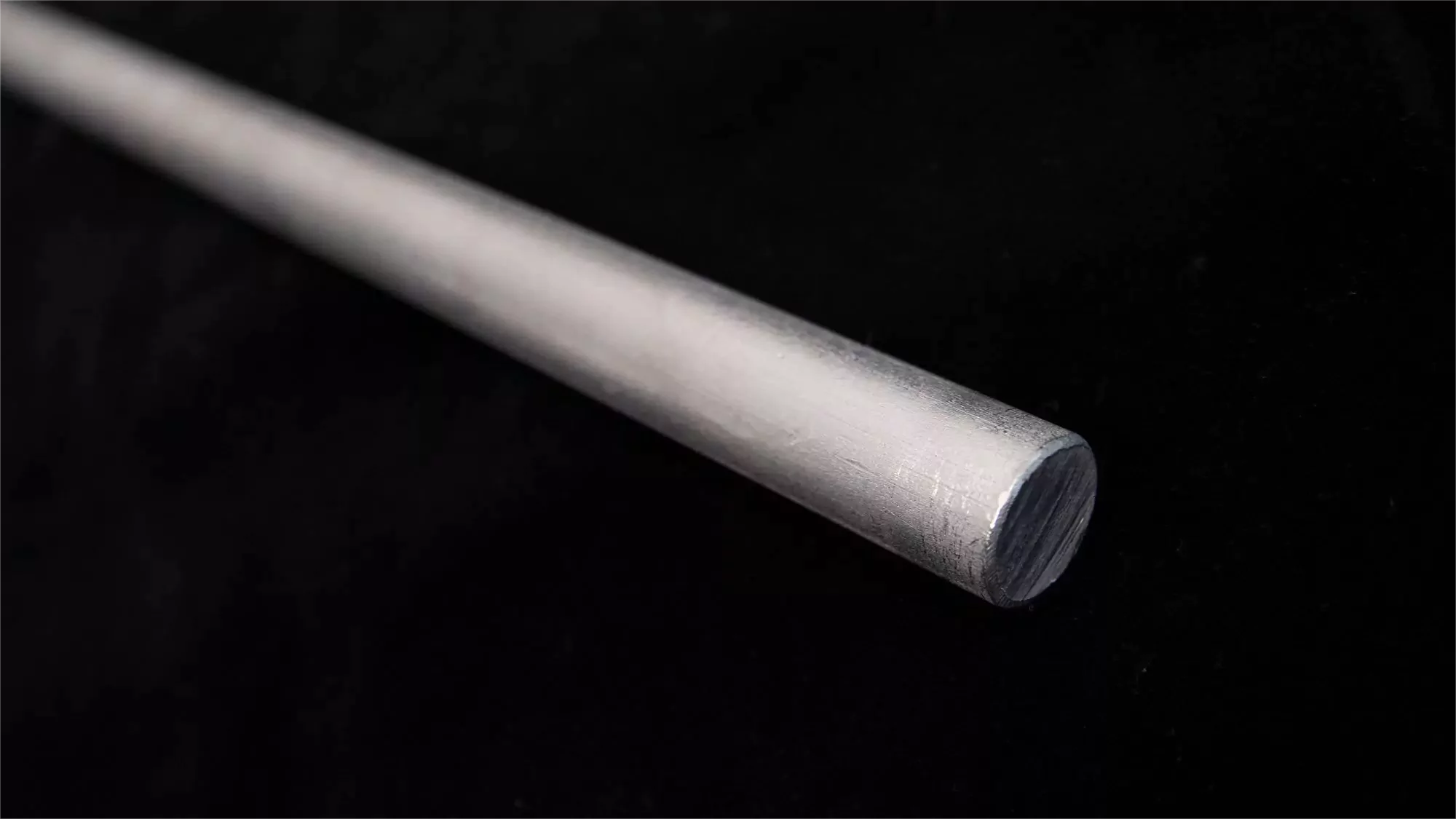

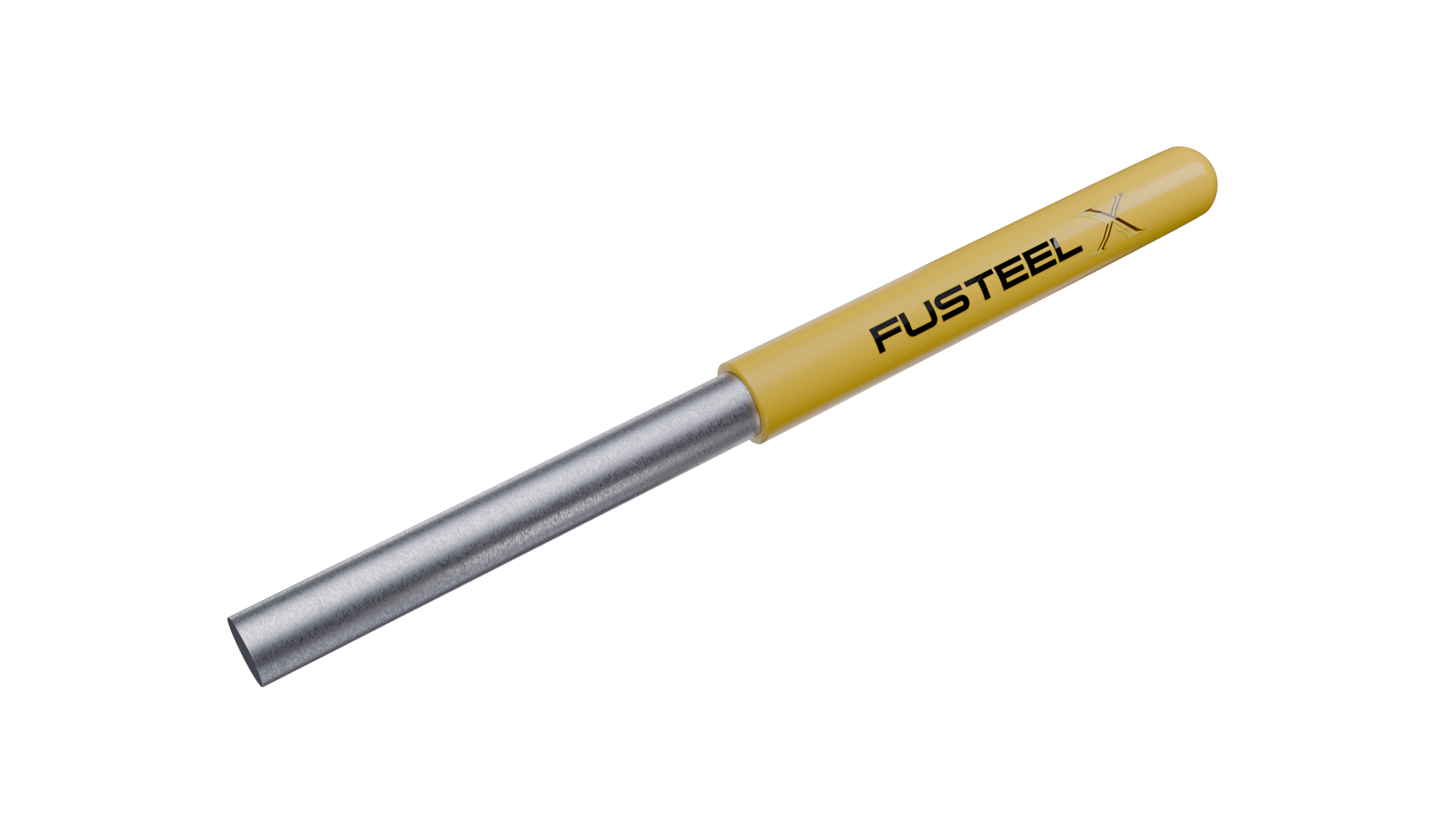

Stainless steel dowel bar
Excellent Corrosion Protection
High Durability:Manufactured from high-performance austenitic stainless steel for outstanding corrosion resistance and long-term durability in harsh environments.
Coating-Free:Inherent corrosion resistance eliminates the need for epoxy or galvanized coatings, avoiding coating damage and failure.

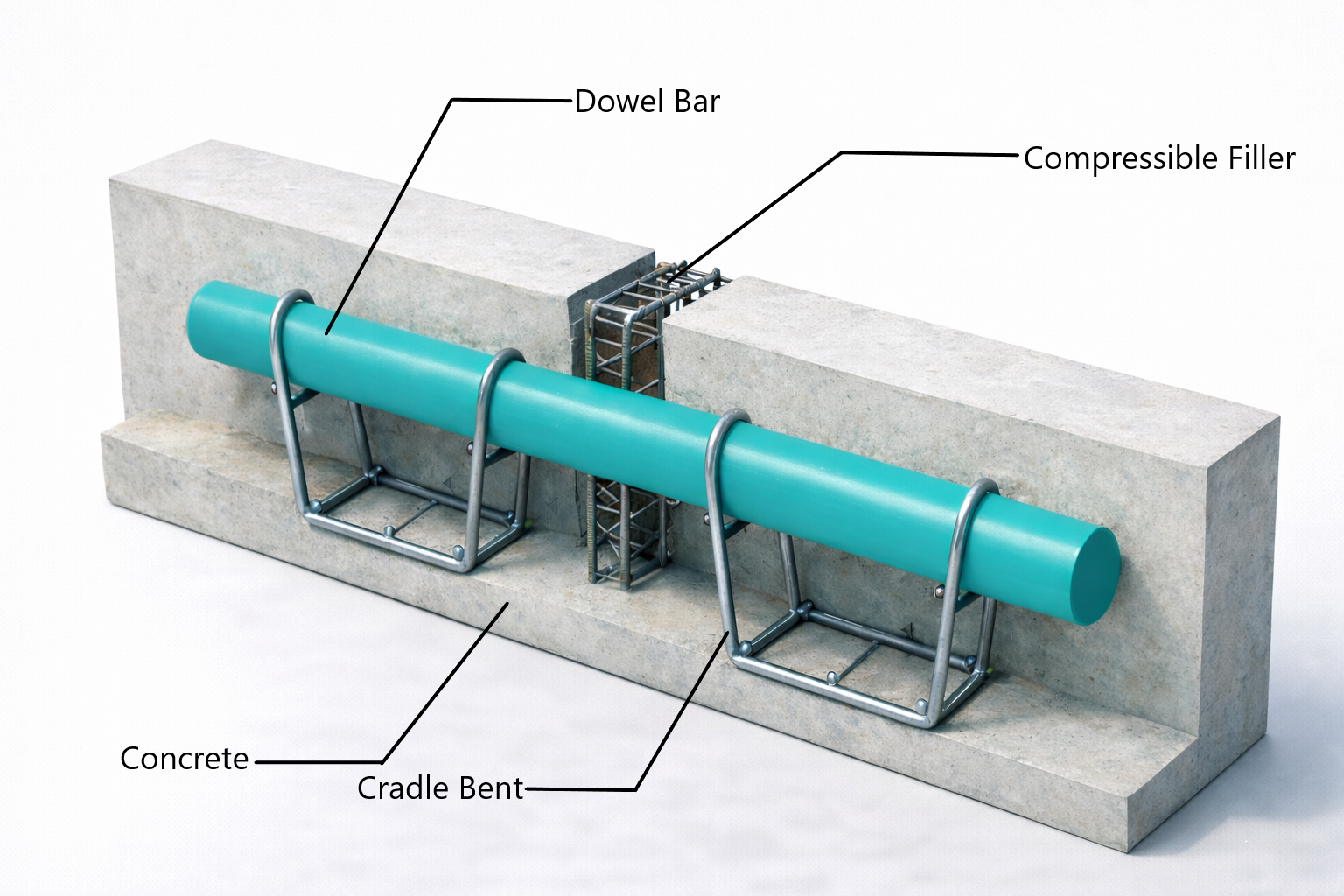

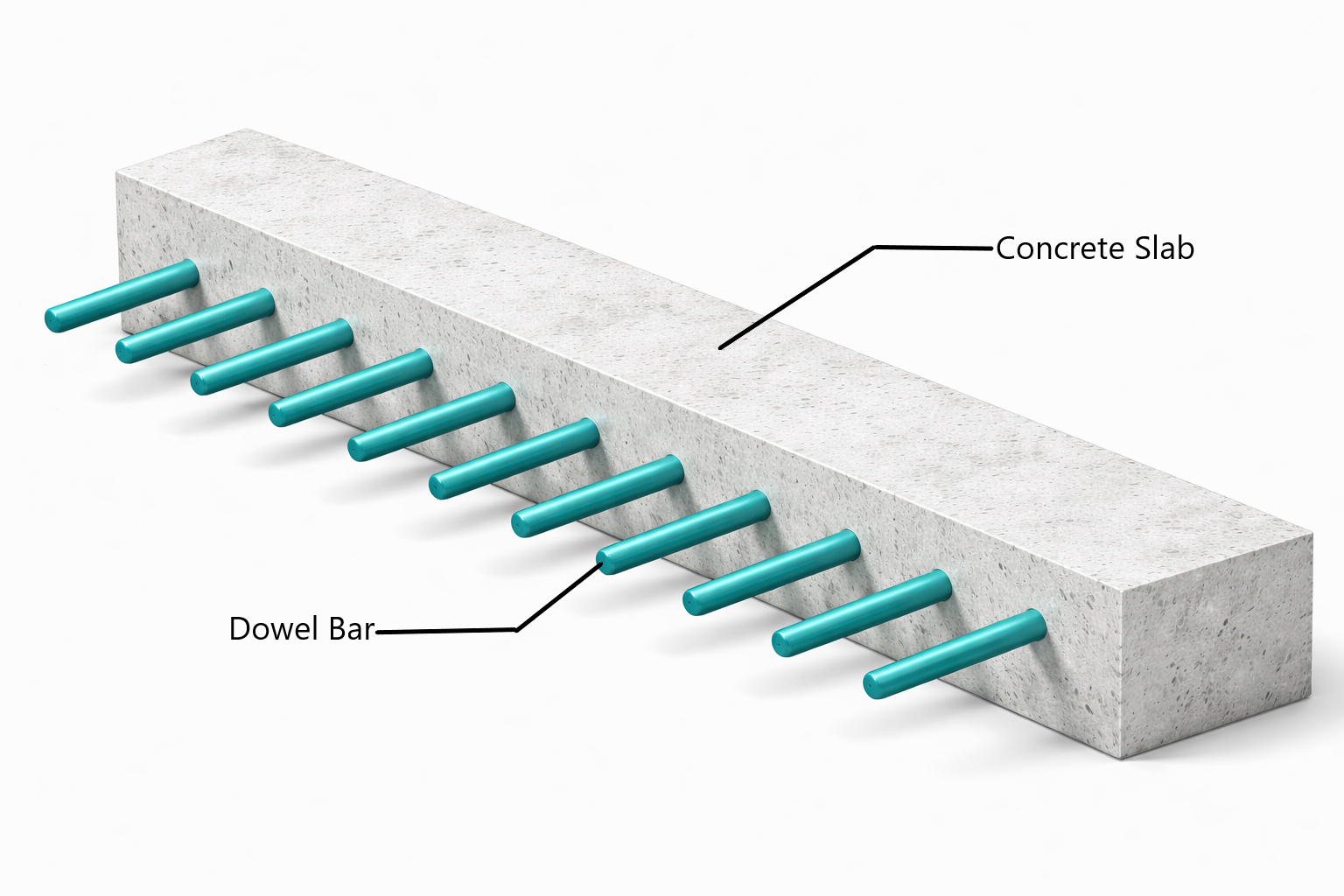

Reliable Load Transfer:Ensures efficient load transfer across concrete joints while allowing unrestricted joint movement.
Multiple Strength Grades:Available in 250 MPa and 500 MPa grades to meet design service lives of over 120 years.
Coating-Free:Inherent corrosion resistance eliminates the need for epoxy or galvanized coatings, avoiding coating damage and failure.
Reliable Load Transfer:Ensures efficient load transfer across concrete joints while allowing unrestricted joint movement.
Multiple Strength Grades:Available in 250 MPa and 500 MPa grades to meet design service lives of over 120 years.
Recommened for
Marine environments or de-icing salt environments- Ports
- Diameters from 10–50 mm
- Long-life infrastructure
- Projects requiring 100+ year service life
Standard: ASTM A276,EN10088
diameter: 16mm~60mm
Steel Designation:
S31600(1.4401),S31603(1.4404),S32205(1.4462),S32304(1.4362)

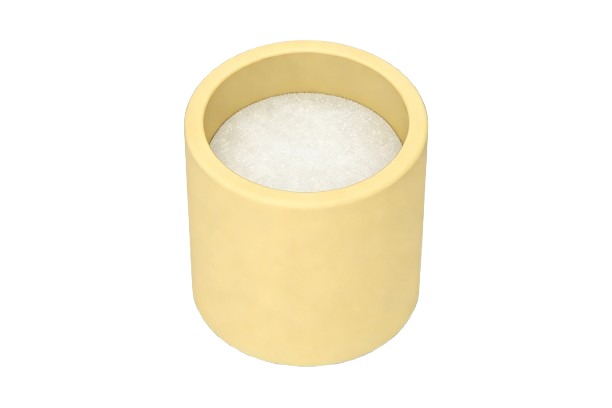

Dowel bar end cap

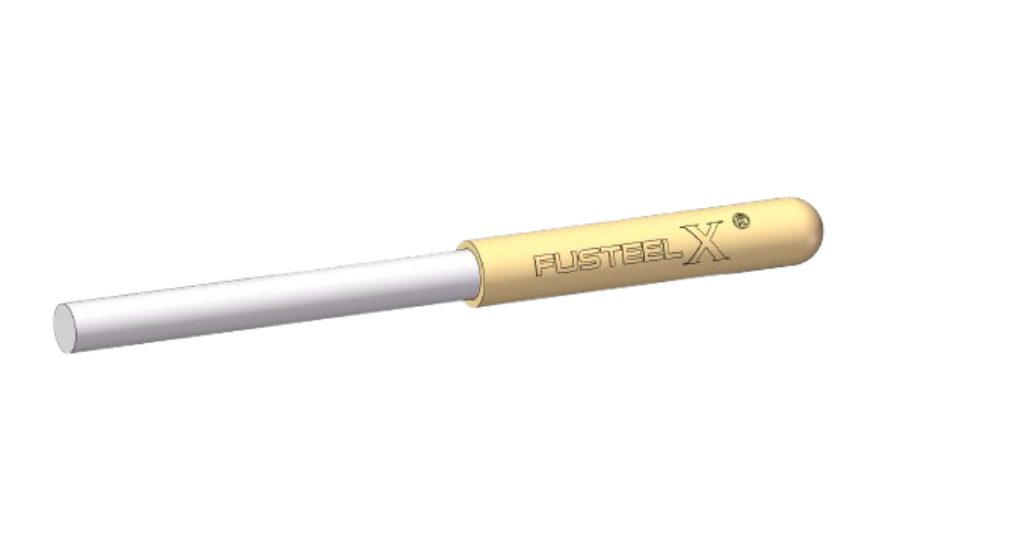

Dowel bar sleeve
| Material | EN:1.4401/1.4404, 1.4462,1.4362 ASTM/UNS: S31600/S31603, S32205,S32304 |
|---|---|
| Steel Grade | Grade 250 Grade 500 |
| Diameter | 16-60mm |
Dimensions Properties
| Dimen sions (mm) | Weight(Kg/m) | |||
|---|---|---|---|---|
| 1.4362 S32304 | 1.4462 S32205 | 1.4404 S31603 | 1.4429 S31653 | |
| 16 | 1.569 | 1.569 | 1.609 | 1.609 |
| 20 | 2.451 | 2.451 | 2.514 | 2.514 |
| 25 | 3.829 | 3.829 | 3.927 | 3.927 |
| 28 | 4.803 | 4.803 | 4.926 | 4.926 |
| 30 | 5.507 | 5.507 | 5.655 | 5.655 |
| 32 | 6.266 | 6.266 | 6.434 | 6.434 |
| 36 | 7.930 | 7.930 | 8.138 | 8.138 |
| 40 | 9.790 | 9.790 | 10.053 | 10.053 |
| 50 | 15.297 | 15.297 | 15.708 | 15.708 |
| 60 | 22.028 | 22.028 | 22.608 | 22.608 |

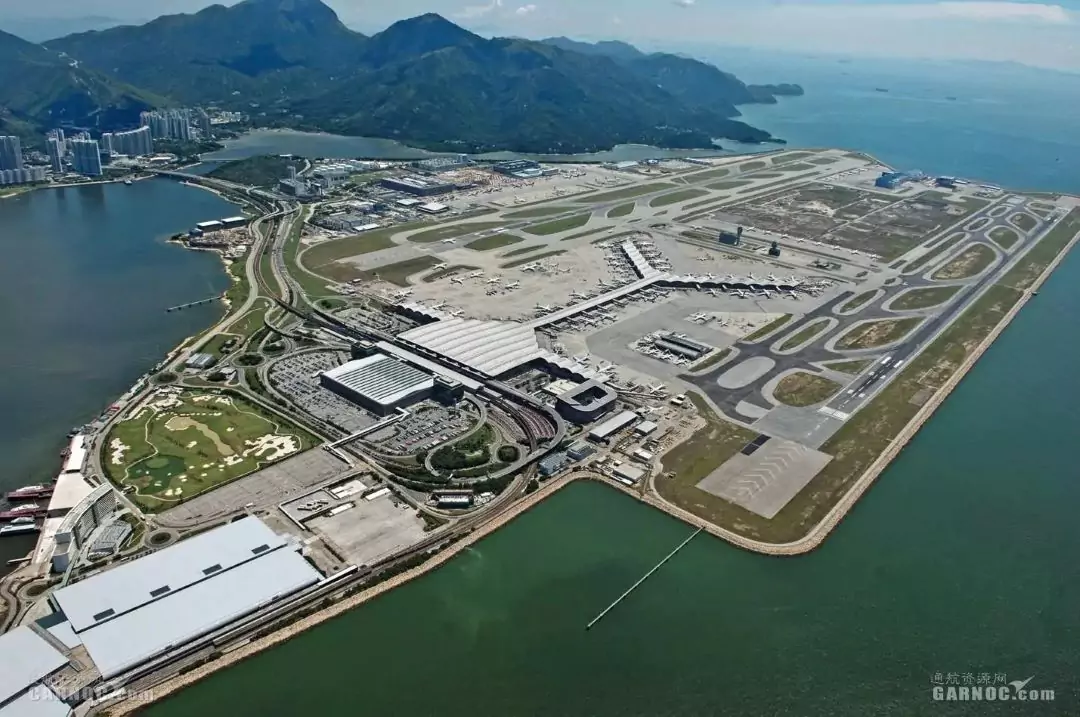

The Third Runway of Hong Kong Airport,Hong Kong

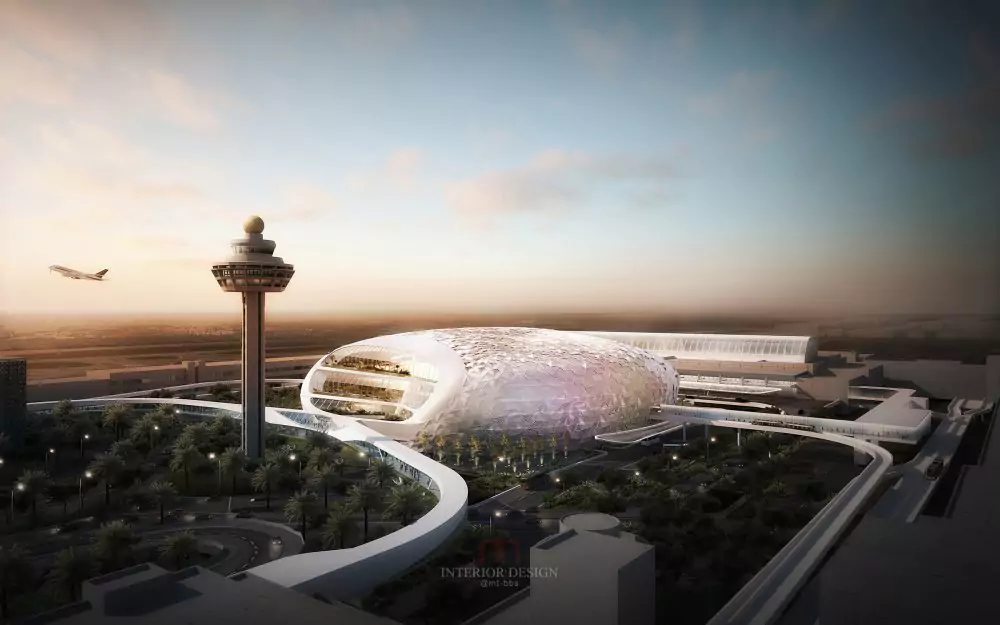

Changi International Airport T4/T5, Singapore

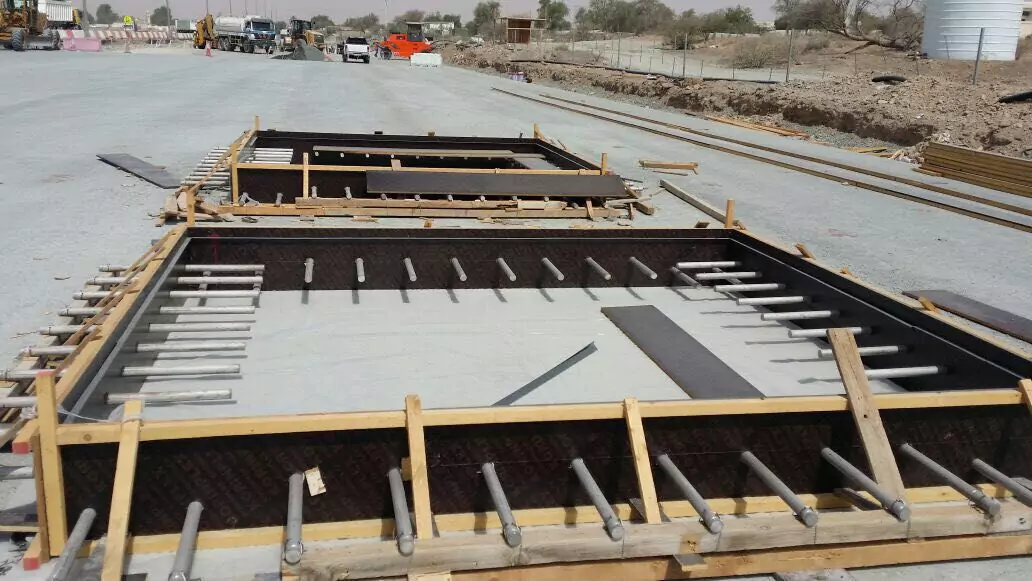

Sharjah-Omen Heavy Truck Expressway, UAE
Epoxy coated dowel bar
Cost-Effective Corrosion Protection
Epoxy Protection:Durable epoxy coating protects against moisture, chlorides, and other corrosive agents.
Reliable Load Transfer:High-strength steel ensures efficient load transfer while allowing free joint movement.
Reduced Wear:Low-friction coating enables smooth slab movement and minimizes wear over time.
Cost-Effective:A proven corrosion protection solution delivering reliable performance at lower life-cycle cost.
Reliable Load Transfer:High-strength steel ensures efficient load transfer while allowing free joint movement.
Reduced Wear:Low-friction coating enables smooth slab movement and minimizes wear over time.
Cost-Effective:A proven corrosion protection solution delivering reliable performance at lower life-cycle cost.
Ideal for
- Highways
- Airport pavements
- Industrial pavements
- Cost-sensitive projects
Standard: ASTM A1078/A1078M ( ASTM A615/A615M Grade40/60/80/100 + ASTM A775)
Diameter: 16mm~60mm
Powder brand
Dowel bar end cap

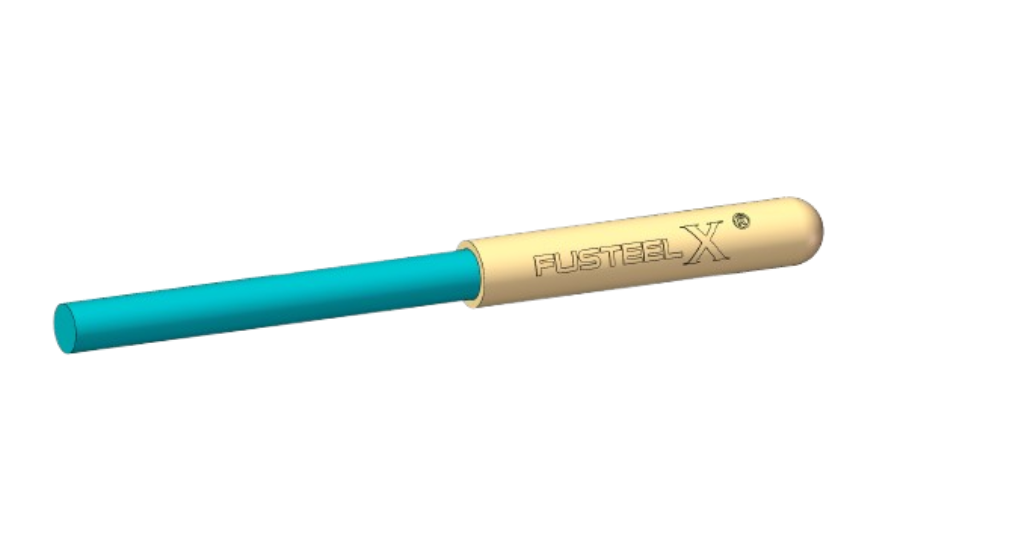

Dowel bar sleeve

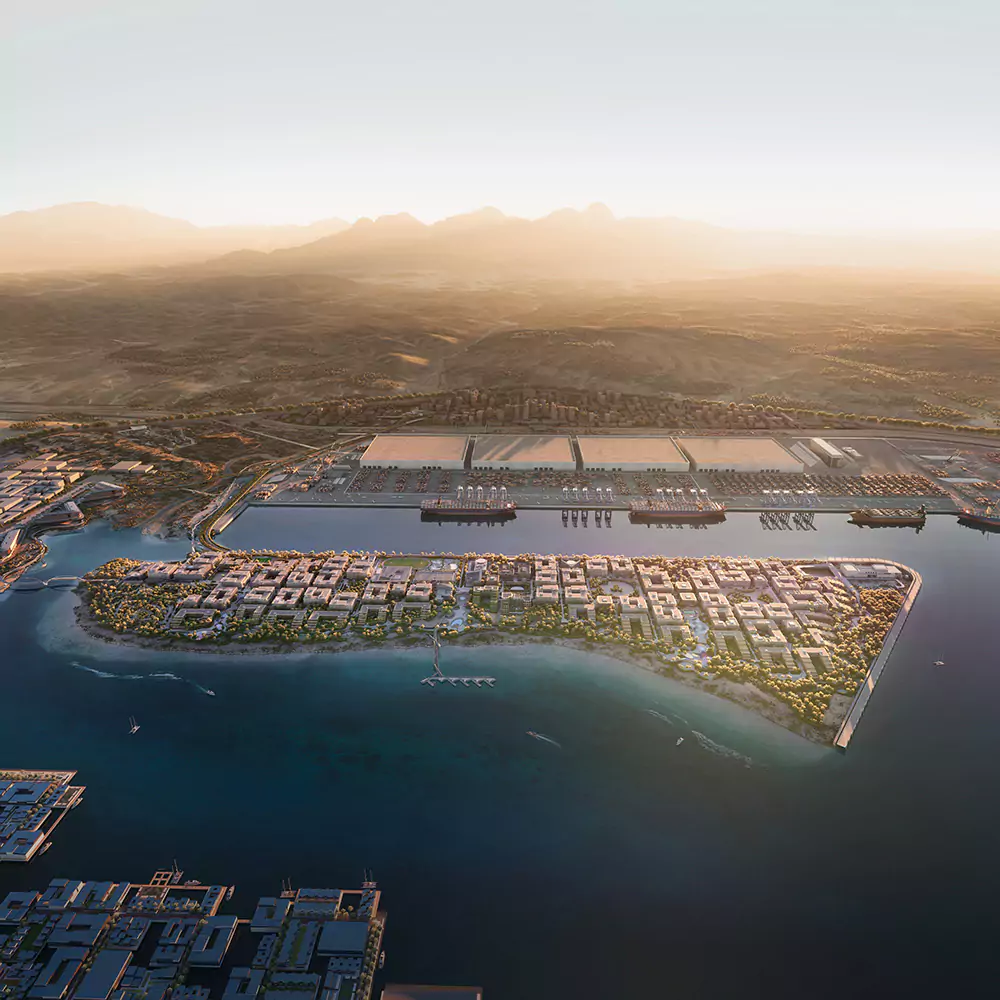

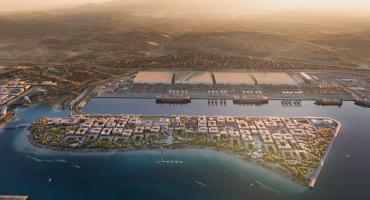

NEOM OXAGON Port,Saudi Arabia

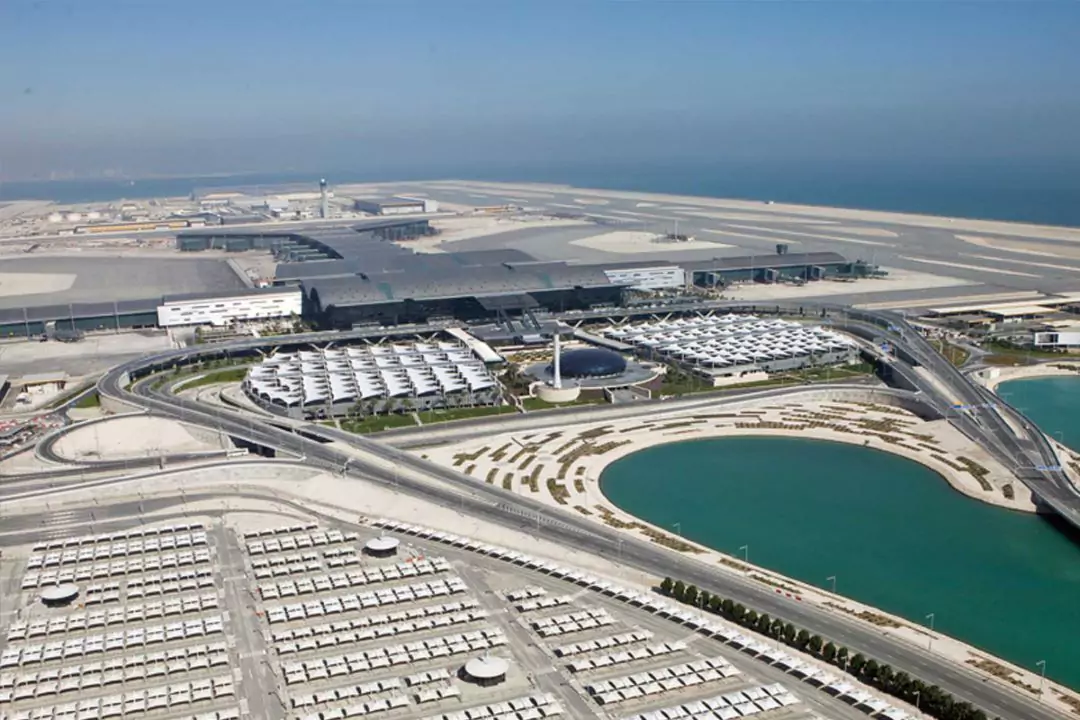

Doha Hamad International Airport, Qatar

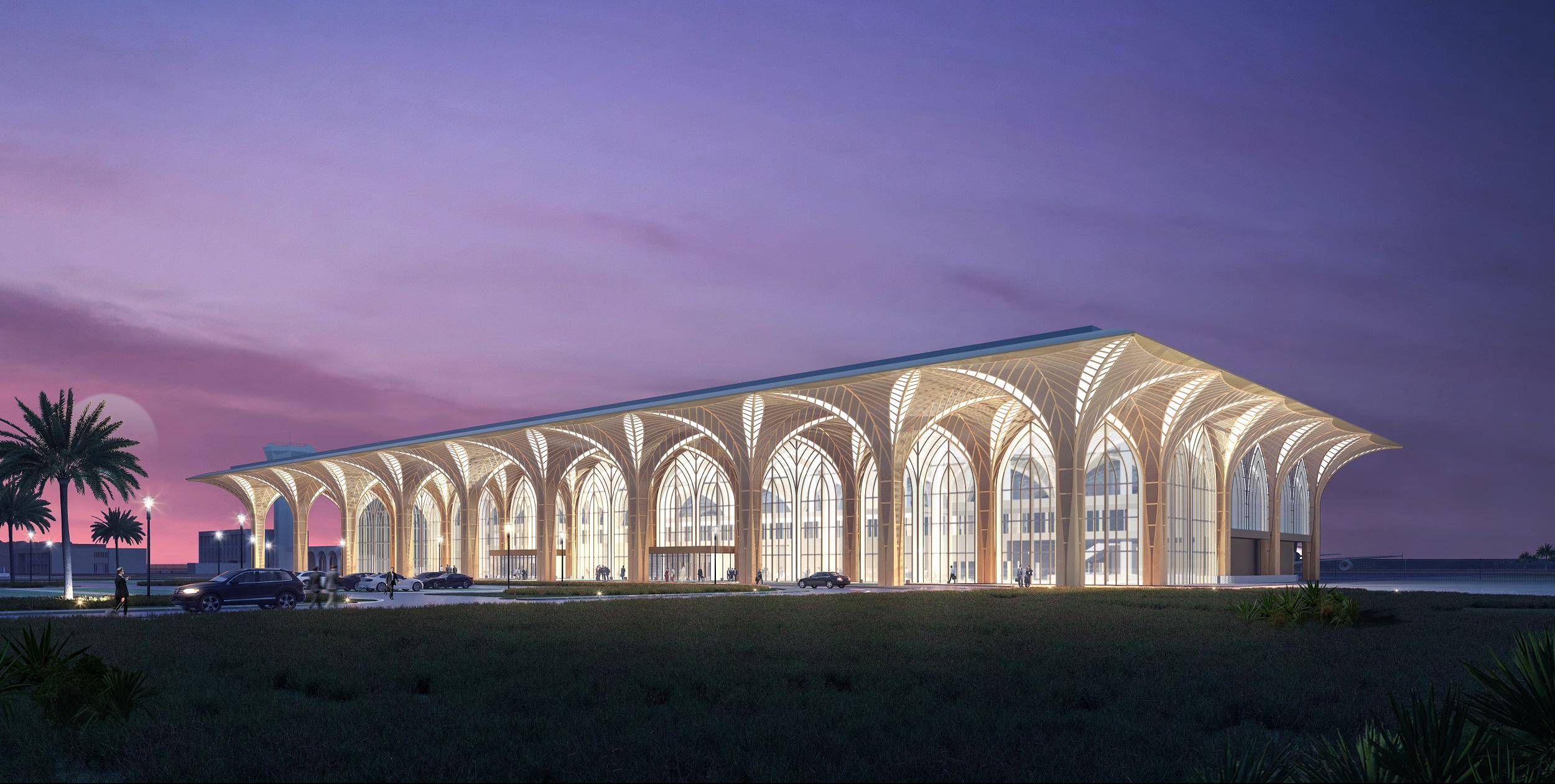

Nasiriyah International Airport,Iraq
